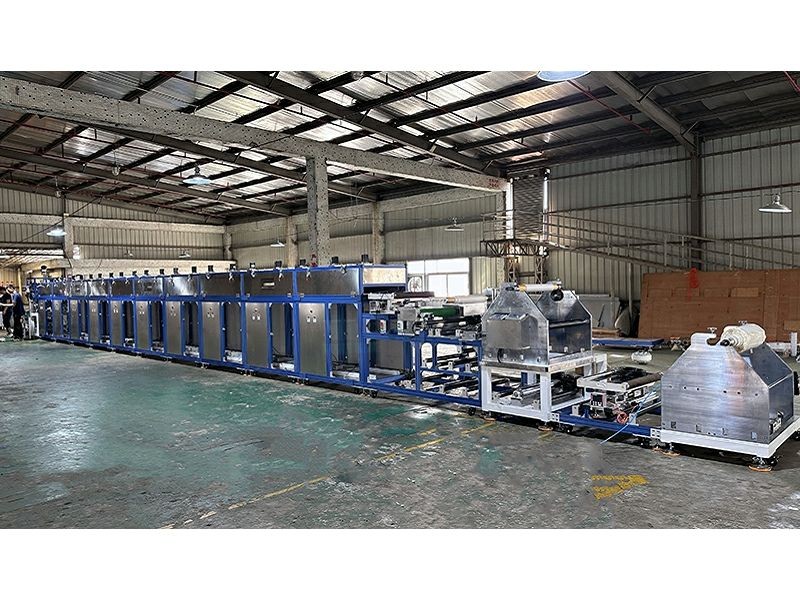

Medical Dressing Applicator
Item: Medical dressing applicator
Accuracy: ≤±5μm
Weight: 5000kg
Lead Time: 30-45 days
Shelf Life: 1 year
OEM is accepted, your tag, label, logo
Product Introduction
Product Details
This machine is specifically designed for the production of products such as adhesive bandages, scar patches, and hydrogel cooling patches; theoretically, it functions by uniformly coating ointments and gels onto a substrate material.
Product Features
1. High precision, enabling high-precision continuous coating;
2. Flexible selection of curing methods;
3. Stable tension system and web transport;
Product Parameters
|
Coating type |
Continuous coating |
|
Guide roller width |
800 mm |
|
Substrate width |
750 mm |
|
Coating width |
700 mm |
|
mechanical speed |
30 m/min |
|
Coating speed |
Pressure-sensitive adhesive 25-30 m/min, silicone gel 15 m/min |
|
Coating thickness |
Continuous coating thickness per side: 0. 05mm-0. 5mm (depending on the slurry, refer to material requirements) Thickness accuracy: ≤±5μm (excluding abnormal edge areas) |
|
Equipment size |
L 23000 mm x W 1200 mm x H 1650 mm (actual dimensions may vary) |
Product Advantages
1. High Precision: Coating accuracy ≤ ±5μm, ensuring consistent medication application per patch and stable efficacy.
2. Automation: Easy and user-friendly operation via PLC and HMI.
3. Flexibility: The Medical dressing applicator is highly flexible, allowing for quick mold and process changes, and can handle various materials such as hydrocolloids and silicone gels.
Applications: Wound care, transdermal drug delivery systems, medical tapes, etc.
