Introduction

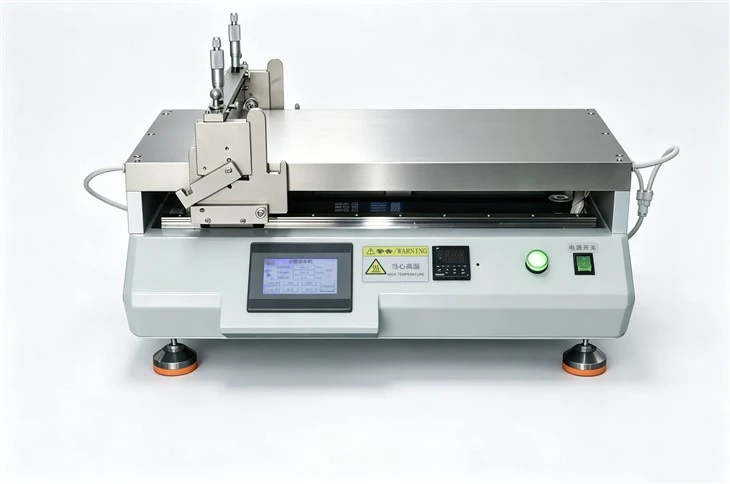

Designed for laboratory research and development involving sheet substrates, this benchtop coating machine is equipped with a doctor blade and a coating bar. Optional vacuum chuck and heating functions are available to accommodate different materials and coating process requirements.
Parameter
|
Coating thickness Precision |
Blade: ±0.005 mm; Wire bar: ±0.001 mm |
|
Heating Temperature Range |
Room temperature to 200°C |
|
Coating Speed |
0-100 mm/s (adjustable) |
|
Applicable Viscosity |
300-150000 mPa·s |
|
Maximum Coating Area |
L: 400 mm × W: 300 mm (adjustable) |
|
Machine Dimensions |
L: 850 mm × W: 450 mm × H: 520 mm |
Product Details
PLC Touchscreen Control
The doctor blade movement is controlled via a PLC-based touchscreen interface, allowing convenient operation during laboratory coating trials.
Manual Coating Gap Adjustment
The coating gap can be manually adjusted using a feeler gauge to help set the required coating thickness for different materials and process conditions.
Optional Heating Function
The optional heating function provides temperature adjustment from 0 to 200°C, supporting coating trials that require controlled substrate or coating-surface temperatures.
Optional Vacuum Chuck
The vacuum chuck holds the substrate flat against the work surface, helping reduce wrinkles and unevenness that could affect coating uniformity.
Compact Benchtop Design
The compact benchtop design makes the machine easy to relocate between laboratory workstations and suitable for use in different testing environments. Its small footprint also facilitates transport when required.
Applications
Suitable for laboratory coating trials involving a wide range of sheet substrates and water-based or solvent-based adhesives. The recommended viscosity range depends on the coating method, material properties, and process conditions.
Application Examples (video)
Application Fields: Lithium-ion batteries, glass, silicon wafers, optical films, perovskite solar cells, functional coatings, precision electronic components, small-batch pilot production, etc.
Product Detail Images
| Coating Precision | Blade: ±0.005 mm; Wire bar: ±0.001 mm |
| Heating Temperature Range | Room temperature - 200°C |
| Coating Speed | 0-100 mm/s (adjustable) |
| Applicable Viscosity | 300-150000 mPa·s |
| Max. Coating Area | L: 400 mm × W: 300 mm (adjustable) |
| Machine Dimensions | L: 850 mm × W: 450 mm × H: 520 mm |
