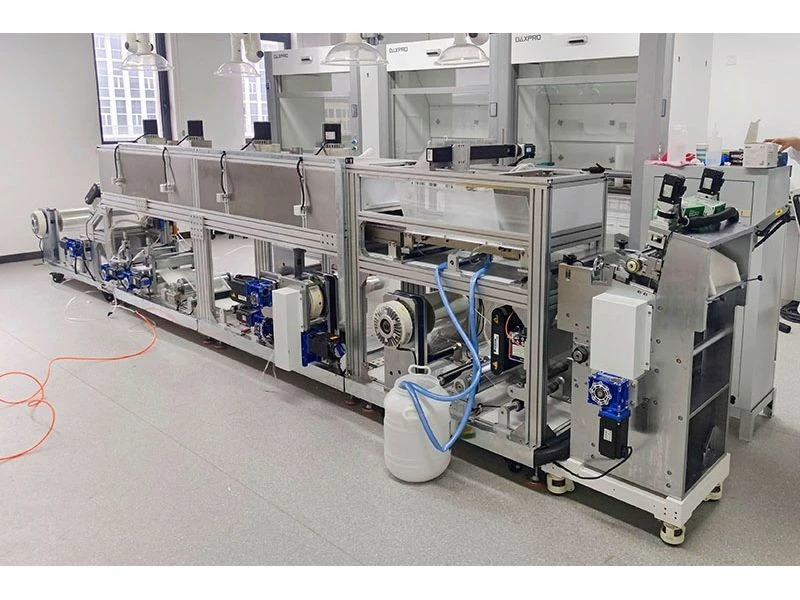

Medical Polymer Composites
Product overview: Medical polymer composites: Coating of chemical reactants, drying, lamination, pressing, slitting, winding, etc.
Product Introduction
Product Overview
1. Medical polymer composites (designed for the pharmaceutical and chemical sectors) controls the winding and unwinding speeds by adjusting the positions of the corresponding tension rollers; it achieves precise substrate web handling by utilizing the rotational linear velocity of the rubber roller as the primary drive speed.
2. This equipment regulates the thickness of the coating material layer on the coating roller by controlling the gap between the backing roller and the coating roller. Through counter-rotation between the coating roller and the backing roller, the entire coating layer is transferred onto the surface of the substrate. Furthermore, the final thickness of the coating on the substrate surface is precisely controlled by adjusting the speed ratio between the coating roller and the backing roller.
3. By subsequently processing the coated roll material on the reverse side-following the completion of the initial single-sided coating-the equipment enables the realization of double-sided coating on the substrate.
Product Features
1. Medical polymer compositesfeatures a segmented modular design, facilitating future expansion.
2. This system enables the industrialized production of functional coatings with high efficiency, high precision, and high consistency.
3. By controlling the forward and backward movement of the coating roller, various modes-such as intermittent and continuous coating-can be achieved.
Product Parameters
|
Power supply |
Single-phase AC 220V ±10% Total Power: 15 kW |
|
Air Source |
0. 5–0. 8 MPa Compressed Air |
|
Coating Type |
Continuous Coating |
|
Coating Type |
Pharmaceutical slurries, polymer-based chemical composites, etc. |
|
Guide Roller Web Width |
250mm |
|
Substrate Width |
Max. 220mm |
|
Coating Width |
0–200 mm, adjustable via a baffle. |
|
Mechanical Speed |
3m/min |
|
Coating Speed |
0. 5-1. 0 m/min |
|
Coating Thickness |
Continuous Single-Sided Coating Thickness: 50 μm (determined by slurry properties; refer to material specifications) Thickness Accuracy: ≤ ±3 μm (excluding edge anomaly zones) |
|
Scraper Adjustment |
Manual/Automatic Adjustment, Display Resolution: 1 μm |
process flow
