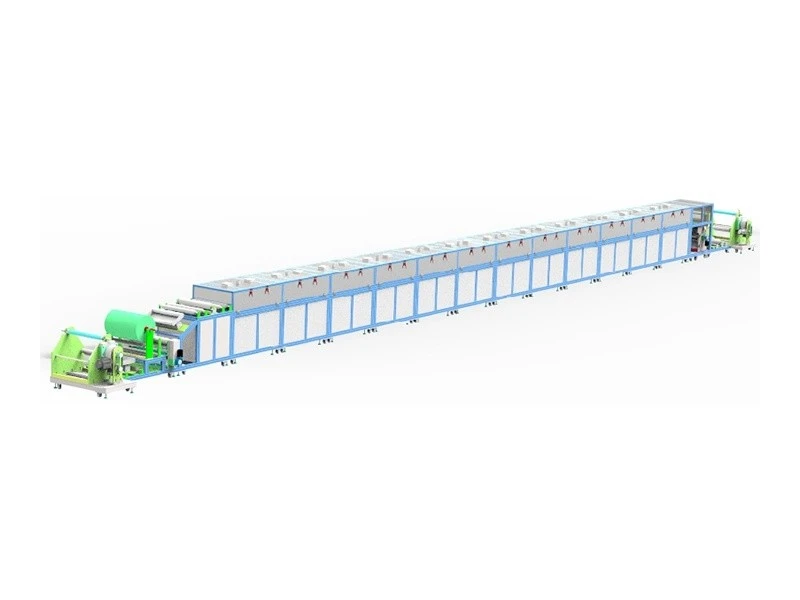

Pressure Sensitive Adhesive Coater
This pressure sensitive adhesive Coater is specifically designed for the coating of medical pressure-sensitive adhesives and silicone gel ointments, and is also suitable for other high-precision coating applications.
Product Introduction
Product Introduction
This pressure sensitive adhesive Coater is specifically designed for the coating of medical pressure-sensitive adhesives and silicone gel ointments, and is also suitable for other high-precision coating applications.
Product Overview
This pressure sensitive adhesive Coater features fully automated heating for both the coating head doctor blade and the backing plate. It is equipped with cameras at both the front and rear, and the drying oven incorporates a UV sterilization design. The machine spans a total length of 23 meters and includes an automatic winding mechanism at the tail end, along with an integrated cutting unit to enable automatic cutting-forming a complete, integrated production line. Once the coating on one side is completed, the coated roll is inverted to undergo a second single-sided coating process on the reverse side, thereby achieving double-sided coating of the substrate material.
Product Features
1. This pressure sensitive adhesive Coater features a segmented, modular design and is available as a product series, allowing users to select specific coating methods, drying techniques, and functional modules based on their specific requirements.
2. In addition to being suitable for medical pressure-sensitive adhesives, the equipment can be adapted-through specific modifications tailored to the characteristics of other coating materials-to accommodate the vast majority of coating applications.
3. This pressure sensitive adhesive Coater enables the industrialized production of functional coatings with high efficiency, high precision, and exceptional consistency.
Product Specifications
|
Power supply |
Single-phase AC 380V ±10%, 50Hz Total Power: 160 kW |
|
Operating Voltage |
380V/220V |
|
Air Source |
0. 5–0. 8 MPa Compressed Air |
|
Coating Type |
Continuous Coating |
|
Applicable Systems |
Hot-melt adhesives, silicone gels, water-based adhesives, solvent-based adhesives |
|
Guide Roller Web Width |
800 mm |
|
Substrate Width |
750 mm |
|
Coating Width |
700 mm |
|
Mechanical Speed |
30 m/min |
|
Coating Speed |
Pressure-sensitive adhesive: 25–30 m/min; Silicone gel: 15 m/min. |
|
Coating Thickness |
Continuous Coating Single-Side Thickness: 0. 05 mm – 0. 5 mm (Determined by slurry properties; refer to material specifications) Thickness Accuracy: ≤ ±5 μm (Excluding edge anomaly zones) |
|
Scraper Adjustment |
Manual/Automatic Adjustment, Display Resolution: 1 μm |
|
Coating Basis Weight |
≤ ±1. 5% (Including substrate; excluding anomalous edge regions) |
|
Align on Both Sides |
±0. 5 mm (Lengthwise) |
|
Hopper Capacity |
Approx. 5 L (Customized) |
|
Back-stick diameter |
Φ 400 mm, Roller Runout ≤ 3 μm (Customized) |
|
Rubber Roller Diameter |
Ø60–80 mm (Custom) |
|
Scraper Diameter |
Ø160mm (Custom) |
|
Curing Method |
It utilizes infrared tubes and cold-light UV lamps, features dust removal mechanisms at both the top and bottom of the chamber, and is equipped with a sterilization function. |
|
Exhaust Ventilation |
Centrifugal fan, airflow 570 m³/h (provided by the customer on-site) |
|
Tension Control |
5-40N |
|
Winding and Unwinding Diameter |
Max. Ø 800 mm (Custom) |
|
Winding and Unwinding Core |
Max. Ф76mm |
|
Operational Direction |
Along the direction of foil travel, the right side is the operating side. |
|
Equipment Dimensions |
L 23, 000 mm × W 1, 200 mm × H 1, 650 mm (Subject to actual dimensions) |
|
Weight |
Approx. 5, 000 kg (subject to actual weight) |
