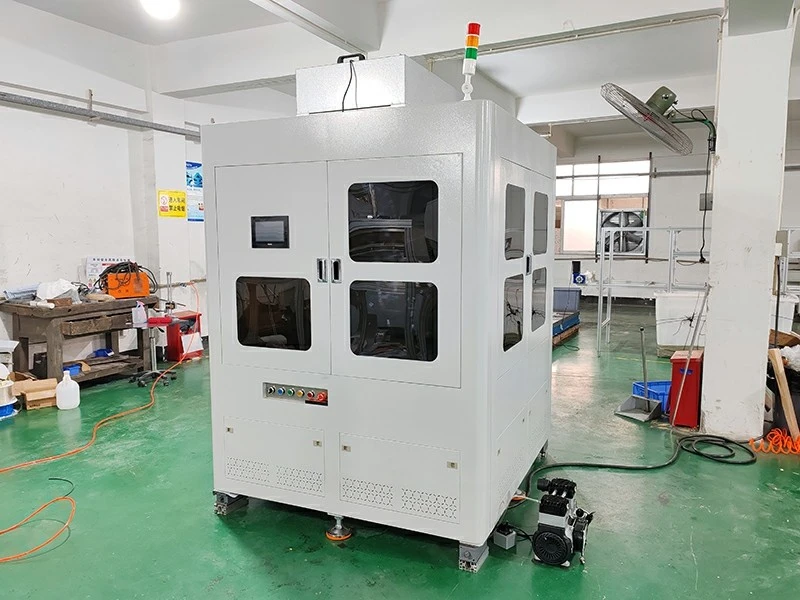

Perovskite Coating Machine
Product Introduction: perovskite coating machine is a new-generation, R&D-oriented coating system developed by Yingnaite, capable of applying coatings to a wide variety of substrates.
Product Introduction
Product Details
Perovskite coating machine utilizes a vacuum chuck to secure the substrate via adsorption. By integrating a gantry motion system, a high-precision fluid delivery pump, and a coating head for material dispensing, the system enables the precise deposition of thin films using a wide variety of materials. perovskite coating machine delivers exceptional overall coating uniformity while minimizing material consumption and ensuring high operational speed. It is capable of uniformly applying target slurries onto substrate surfaces and, through specific process methodologies, precisely controlling parameters such as coating thickness, dimensions, and geometry; the slurry is subsequently cured and bonded to the substrate surface via a slit-coating process. This equipment is designed for use with sheet-form substrates-yielding sheet-form finished products-and is widely employed in high-precision coating R&D across sectors such as displays, solar energy, semiconductors, and flexible electronics.
Product Features
1. The Perovskite coating machine is Equipped with a vacuum adsorption function;
2. Suitable for sheet-form substrates;
3. Ensures excellent coating uniformity and minimizes material consumption.
Product Parameters
|
Substrate Dimensions |
500*500mm |
|
Substrate Type |
Glass |
|
Substrate Thickness |
Customizable |
|
Film Thickness Range |
200nm ~ 1um |
|
Uniformity |
≤ ±5% |
|
Edge Effect |
Customizable |
|
Material Viscosity Range |
Standard 1 to 50 cps (Syringe Pump) |
|
System Packing Quantity |
Under 30ml |
|
Certification |
Compliant with UL and CE standards |
|
Liquid Medicine Tank |
Material: PE | Valve: SMC |
|
Syringe Pump |
Syringe pump capacity: 5 ml; System base reservoir volume: 30 ml. |
|
Slot Coating Head |
316L Stainless Steel Alloy (Corrosion-resistant; suitable for coating materials with a wide range of properties) | Maximum Coating Width: 296 mm |
|
Vacuum Chuck |
Chuck Material: Granite. Flatness: ≤ 10 µm. Substrate Securing Method: Vacuum Suction. Vacuum Port Diameter: ≤ 1. 0 mm. |
|
Pre-coating and Cleaning Areas |
The equipment features a pre-coating zone; the pre-coating area can be programmatically controlled, and the cleaning and storage positions of the coating head can be configured via the HMI. |
|
Air Knife |
Features two-stage rotation and an upgradable 12-speed control system; includes a linear air outlet with adjustable airflow angles, and is equipped with a control valve for adjusting airflow volume. |
|
Weight |
Approx. 1, 200 kg (Customized) |
|
Equipment Dimensions |
L 1450 mm x W 1200 mm x H 1650 mm (Custom) |
