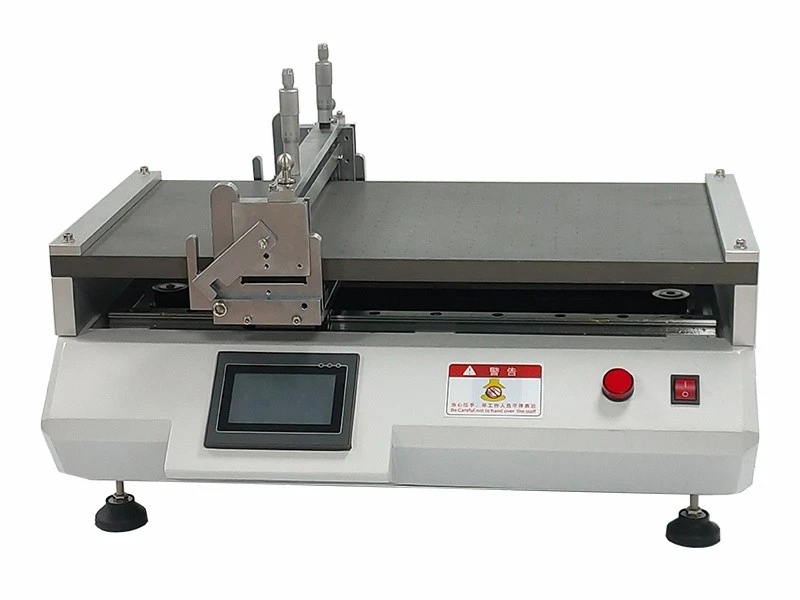

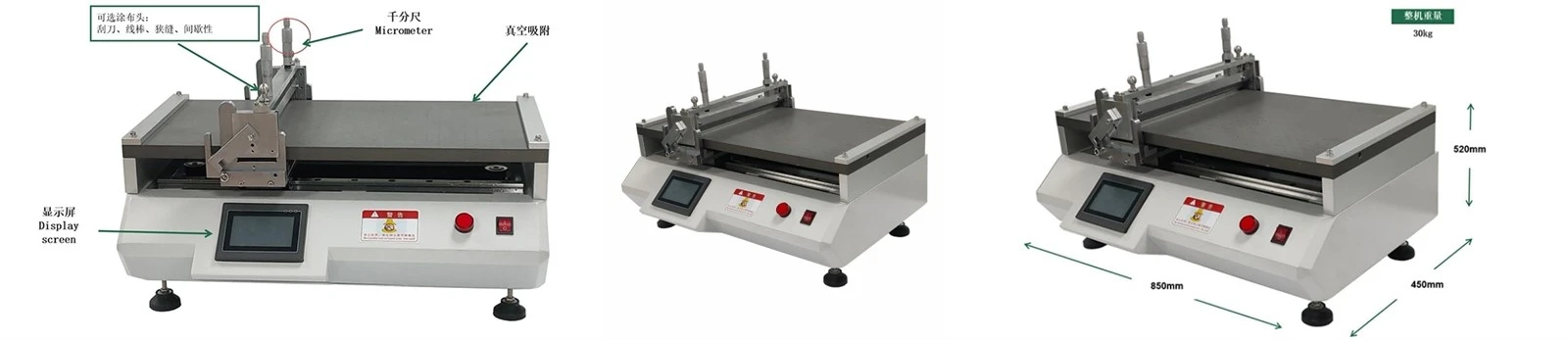

Sheet Coating Machine
Products overview: Sheet coating machine is suitable for Glass, silicon wafers, metal plates, or cut thin films etc.
Product Introduction
Product Introduction
Sheet coating machine is designed for coating individual sheets or various fixed sheet-like substrates (such as glass or silicon wafers). As a laboratory-grade coater capable of nanoscale deposition, it features stable performance and ensures uniform coating, making it ideal for small-batch production and dedicated laboratory use.
Product Features
1. Sheet coating machine: Features a miniature footprint while delivering high coating precision and nanoscale deposition capabilities, resulting in minimal experimental error rates.
2. Smooth Operation: The coating head (die) or doctor blade moves with precision to apply the coating, while the substrate remains stationary or undergoes linear motion during the process, ensuring minimal mechanical vibration.
3. Vacuum Function can be addded on Sheet coating machine, enhancing substrate adhesion and flatness, thereby minimizing any potential impact on coating uniformity and consistency.
4. Delivers flawless coating results with minimal material consumption.
Product Specifications
|
Accuracy |
Blade: ±0.005mm; wire rod ±0.001mm |
|
Heating Temperature Range |
0-200℃ |
|
Coating Speed |
0-80mm/s (Adjustable) |
|
Viscosity |
300-150000mPas |
|
Thickness Of Heating Plate |
L: 600mm*W: 300mm |
|
Max Coating Area |
L: 400mm*W: 300mm(Adjustable) |
|
Weight |
60KG |
|
Dimension |
L: 850mm*W: 450mm*H: 520mm |
Product Advantages
1. Comprehensive After-Sales Support:
Our online team provides prompt responses.
2. Ample Stock:
Available for shipment within a short timeframe.
Hot Tags: sheet coating machine, China sheet coating machine manufacturers, factory
