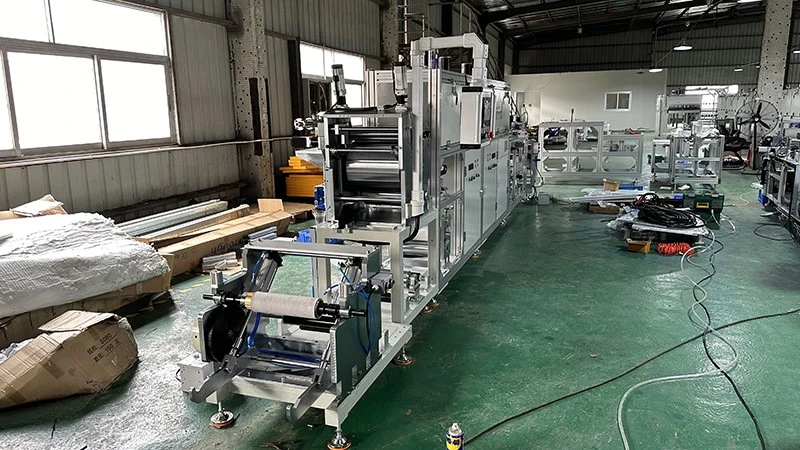

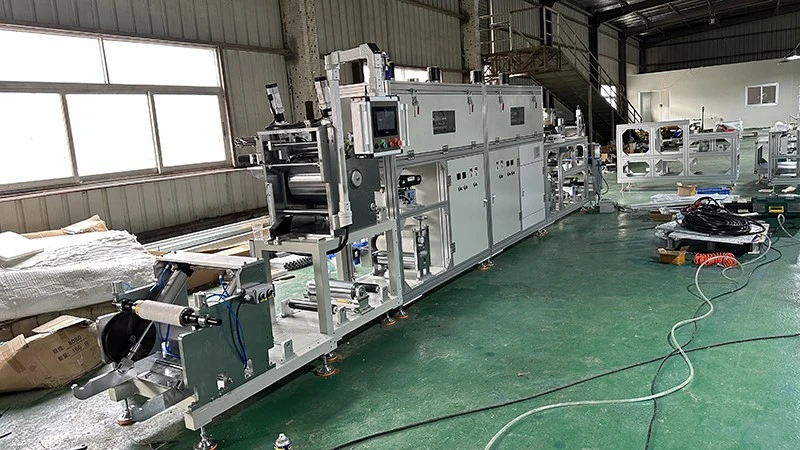

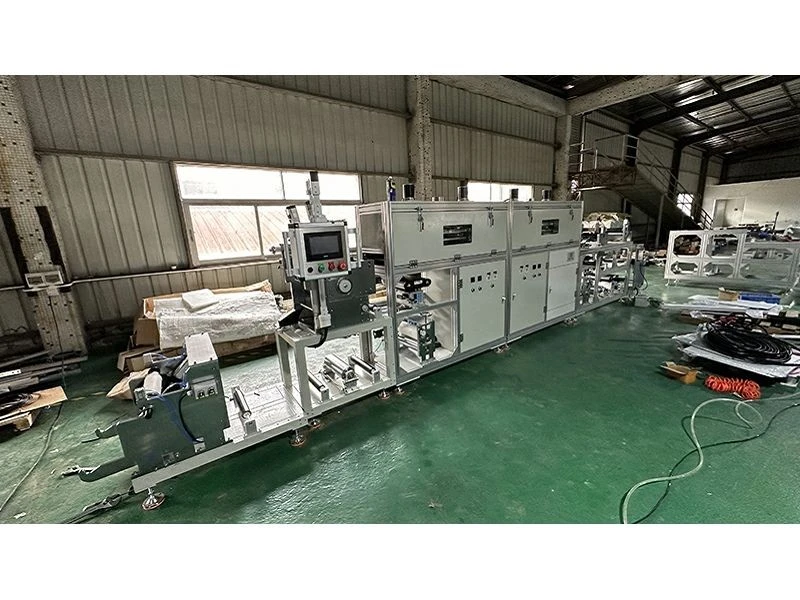

Microbial Test Strip Equipment
Product Overview: This microbial test strip equipment is specifically developed for Microbiological Culture and is suitable for the coating of composite films such as PET and PVC.
Product Introduction
Product Details

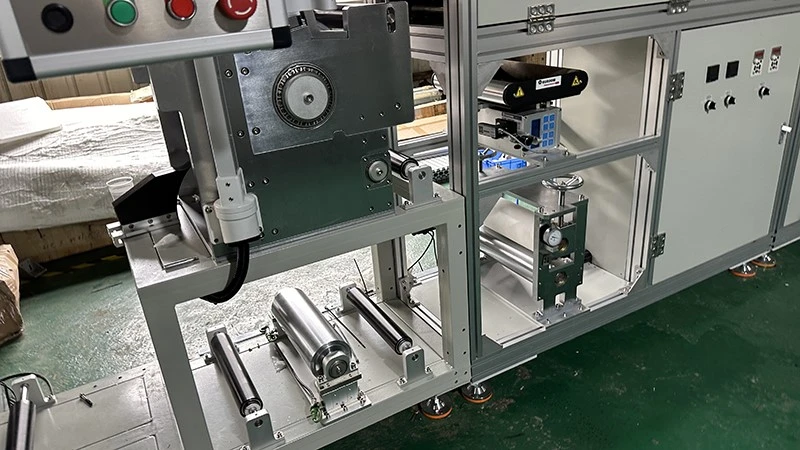

1. This microbial test strip equipment controls the winding and unwinding speeds by monitoring changes in the positions of the tension rollers; it achieves substrate web handling control by utilizing the linear rotational speed of the rubber roller as the primary drive speed.
2. This microbial test strip equipment controls the thickness of the coating layer on the coating roller by regulating the gap between the backing roller and the coating roller. Through the counter-rotation of the coating roller against the backing roller, the entire coating layer is transferred onto the surface of the substrate; subsequently, the final thickness of the coating on the substrate surface is controlled by adjusting the speed ratio between the coating roller and the backing roller.
3. Oven Mechanism Function: The interior of the oven is equipped with infrared heating tubes. It features temperature detection and control capabilities, allowing for automatic temperature regulation to maintain a constant temperature environment.
Key Features
This microbial test strip equipment is capable of uniformly coating a target slurry onto the surface of a substrate. Utilizing specific process methods, it precisely controls parameters such as coating thickness, dimensions, and shape. A hot-air system is employed to cure the slurry, ensuring its firm adhesion to the substrate surface. The device also features edge-trimming capabilities; it is designed to process roll-based substrates and ultimately winds the finished material into a roll.
Product Specifications
|
Power Supply |
Single-phase AC 220V ±10% Total Power: 25 kW |
|
Operating Voltage |
220V |
|
Air Source |
0.5–0.8 MPa Compressed Air |
|
Coating Type |
Continuous Coating |
|
Applicable Systems |
Hot-melt adhesives, silicone gels, water-based adhesives, solvent-based adhesives |
|
Guide Roller Web Width |
280 mm |
|
Substrate Width |
250 mm |
|
Coating Width |
240 mm |
|
Mechanical Speed |
5 m/min |
|
Coating Speed |
3 m/min |
|
Coating Thickness |
Continuous Single-Sided Coating Thickness: 50 μm (Determined by the slurry; refer to material specifications) Thickness Accuracy: ≤ ±5 μm (Excluding edge anomaly zones) |
|
Scraper Adjustment |
Manual/Automatic Adjustment, Display Resolution: 1 μm |
