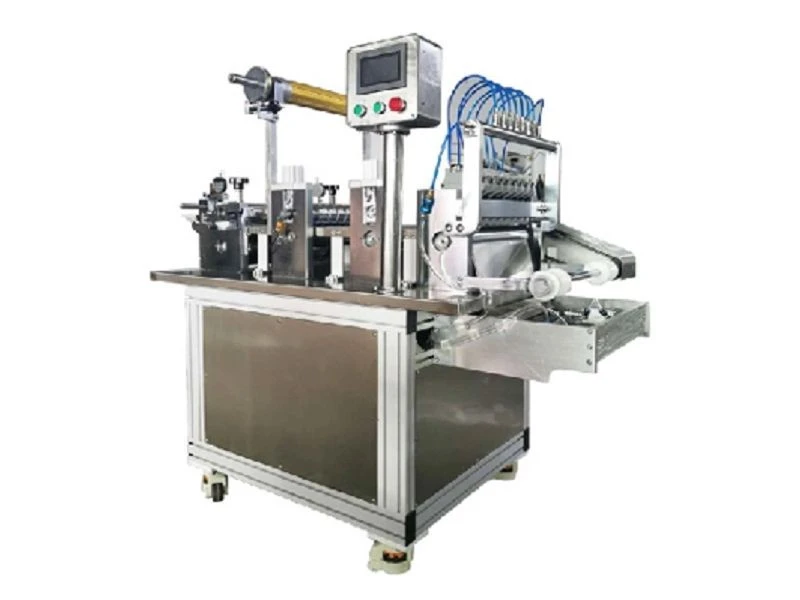

Automatic Hydrogel Coating and Cutting Machine

The Automatic Hydrogel Coating and Cutting Machine is an integrated production system designed for the continuous manufacturing of hydrogel-based patches and personal care products. It combines doctor blade coating, material feeding, photoelectric tracking, conveying, pressing, slitting, and cutting in one automated machine.

The machine adopts a doctor blade coating system with a coating thickness tolerance of ±5 μm, supporting controlled hydrogel application onto different substrate materials. It is suitable for processing medical-grade spunlace fabrics, elastic nonwoven fabrics, and other compatible flexible materials.

Designed for stable continuous operation at speeds of 200–250 pieces per minute, the machine integrates automatic counting, positioning, and cutting functions to support efficient production.

Typical applications include hydrogel cooling patches, hydrogel facial masks, hydrogel eye patches, under-eye patches, and other hydrogel-based products.

With customizable product dimensions and flexible material compatibility, the machine can be configured according to different product designs and manufacturing requirements.

Integrated Doctor Blade Coating System

The machine adopts a doctor blade coating method for applying hydrogel formulations onto flexible substrate materials.

The coating system is designed to provide controlled coating thickness, with a specified thickness tolerance of ±5 μm.

The coating process can be adjusted according to hydrogel viscosity, formulation characteristics, substrate properties, and target product requirements.

Hydrogel Feeding System

The machine is equipped with a hydrogel feeding hopper with a capacity of approximately 25 kg.

The feeding system supplies hydrogel to the coating section for continuous processing. Feeding conditions can be adjusted according to the material's flow characteristics and production requirements.

Photoelectric Tracking and Positioning System

An integrated photoelectric tracking system detects material positioning and helps maintain alignment during continuous operation.

This system supports consistent material positioning during conveying, pressing, and subsequent cutting processes.

Pressing, Slitting and Cutting Units

The machine integrates longitudinal pressing, transverse pressing, slitting, and cutting units.

These functional sections work together to process coated materials into individual hydrogel products.

Product dimensions and cutting configurations can be customized according to customer requirements, allowing the machine to accommodate different product shapes and sizes.

 Automatic Production Control

The machine adopts variable-frequency stepless speed adjustment to regulate production speed according to actual manufacturing requirements.

Its automatic functions include:

Automatic product counting.

Continuous material conveying and processing.

Automatic cutting operations.

High-position cutter stopping for convenient adjustment and troubleshooting.

With a stable continuous operating speed of 200–250 pieces per minute, the machine is designed to support high-throughput hydrogel patch manufacturing.

Hydrogel Cooling Patches

Suitable for manufacturing hydrogel cooling patches using compatible nonwoven and elastic fabric substrates. Typical products include forehead cooling patches and other topical cooling products.

Hydrogel Facial Masks

Designed for coating and processing hydrogel facial mask materials, including compatible spunlace fabrics and other flexible substrates.

Hydrogel Eye Patches

Suitable for manufacturing hydrogel eye patches with customized shapes and dimensions for cosmetic and personal care applications.

Hydrogel Under-Eye Patches

The machine can process hydrogel materials into under-eye patches with different product specifications according to customer requirements.

Other Hydrogel-Based Products

The equipment can also be evaluated for other hydrogel-based adhesive patches, functional gel patches, and personal care products, depending on formulation properties and substrate compatibility.

Different hydrogel products require different coating conditions, substrate materials, and cutting dimensions. INNATE provides customized machine configurations based on the customer's actual production requirements.

Coating Process

Doctor blade coating configuration.

Coating thickness control according to process requirements.

Coating adjustments based on hydrogel viscosity and material characteristics.

Substrate Materials

Medical-grade spunlace fabric.

Two-way stretch elastic fabric.

Four-way stretch elastic fabric.

Nonwoven fabrics.

Printed flexible substrates.

Other compatible film and fabric materials.

Product Dimensions

Customizable maximum and minimum product dimensions.

Customized product shapes and cutting configurations.

Processing arrangements based on the customer's product design.

Production Requirements

Production speed adjustment.

Feeding system configuration.

Material handling and positioning requirements.

Customized processing configuration for different hydrogel formulations.
