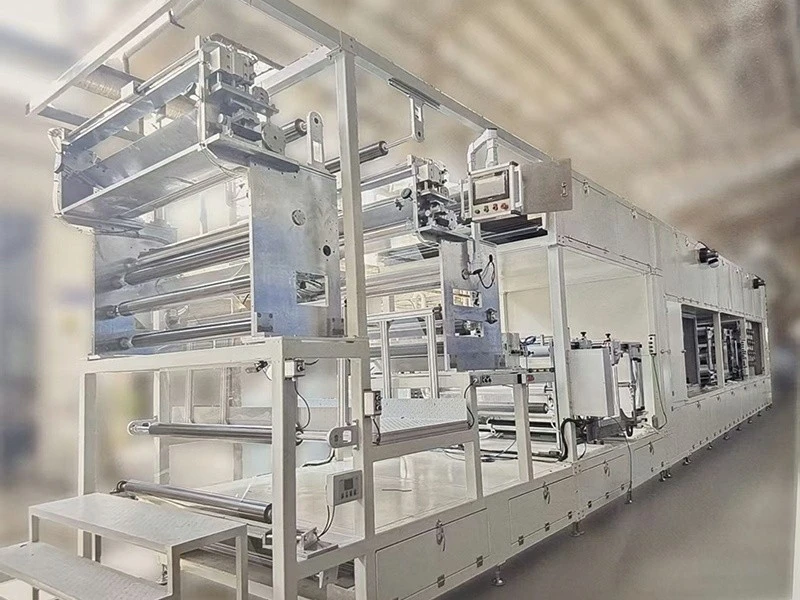

Film Coating Machine
This film coating machine features dual winding and unwinding stations designed to minimize downtime. After the substrate undergoes single-sided coating via a comma roller and subsequent drying, it passes through a looped drying tunnel to enter the top-coat coating section. It then proceeds through a second looped drying tunnel to the winding station.
Product Introduction
Products overview
This film coating machine features dual winding and unwinding stations designed to minimize downtime. After the substrate undergoes single-sided coating via a comma roller and subsequent drying, it passes through a looped drying tunnel to enter the top-coat coating section. It then proceeds through a second looped drying tunnel to the winding station.
Product Details

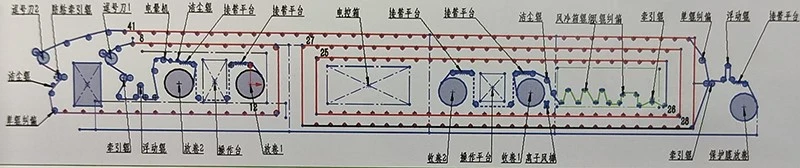

This film coating machine incorporates a tension control mechanism, an edge-guiding device, and a main drive unit-isolated by a rubber nip roller-along with an anti-static device, before the material is finally wound into a finished roll. Additionally, a protective film lamination mechanism is positioned at the machine's exit; this unit can be integrated into the looped drying tunnel to establish an alternative process route.
Product Features
1. Equipped with a circular drying tunnel, the arched structural design minimizes the surface area exposed to external cold air, thereby enhancing thermal insulation and significantly reducing energy consumption.
2. This film coating machine features precise substrate tension control, enabling stable web transport even under low-tension conditions.
3. Part of a modular product series, allowing customers to select specific coating methods, drying techniques, and functional modules based on their specific requirements.
4. Offers a wide coating window, making it adaptable to a diverse range of coating applications; it is particularly well-suited for production scenarios involving web widths of up to 1400 mm and high line speeds.
Product Specifications
|
Coating Type |
Comma Blade |
|
Guide Roller Width |
1500mm |
|
Substrate Width |
1450mm |
|
Coating Width |
1400mm |
|
Mechanical Speed (Material 1) |
5-10m/min |
|
Mechanical Speed (Material 2) |
30-40m/min |
|
Coating Speed |
Based on the curing time setting |
|
Coating Thickness |
Continuous Single-Sided Coating Thickness: CNC-controlled coating thickness adjustment; thickness accuracy ≤ ±5 μm. |
|
Equipment Dimensions |
L 17000 mm×W 1800mm×H 3000mm(Subject to actual dimensions) |
Product Advantages
1. Coating precision of ≤ ±5 μm, effectively resolving the issue of significant thickness fluctuations inherent in traditional processes.
2. Capable of processing a wide range of materials-from low-viscosity functional coatings to high-viscosity slurries-to accommodate diverse process requirements.
3. Supports rapid switching between multiple operating modes (including continuous coating), offering exceptional production flexibility.
Application Fields: This film coating machine are suggested to be usded in especially new energy batteries, photovoltaic energy storage, optoelectronics, semiconductors, and more.
