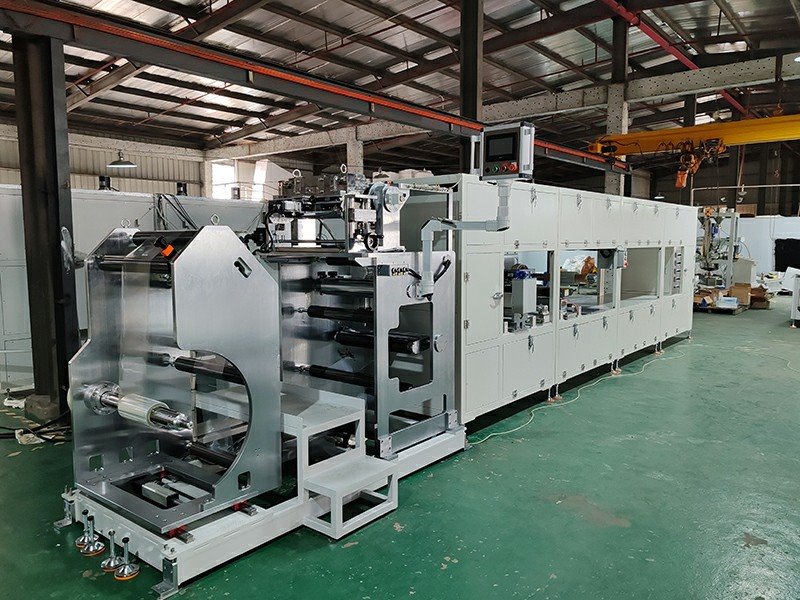

Slot Die Coating Machine
Products overview: Slot Die Coating s a high-precision coating process featuring a backing roller design ranging from 150 to 320 mm, and is suitable for coating fluids with a viscosity of 15 to 20,000 cps.
Product Introduction
Product Details
The slot coater is a coating machine using a high-precision slot coating head. It is suitable for coating applications requiring high precision, or coatings that need to be airtight or have a high solids content. It can also handle various coating patterns, such as stripes and zebra stripes. It meets the needs of high-end manufacturing industries, such as thin film preparation in power batteries, display panels, semiconductors, and photovoltaics.
Product Features
1. Slot Die Coating Machine offers a high coating precision and uniform surface quality;
2. Wide coating window, adaptable to various coating scenarios, especially suitable for substrates up to 550mm thick and high linear speed production.
3. Enables continuous coating with good repeatability.
4. Substrate tension control allows for low-tension tape feeding and stable tape feeding.
5. PLC control and HMI operation, convenient and easy to use.
6. Solvent-free, environmentally friendly and clean.
Product Parameters
|
Coating type |
Slit coating |
|
Guide roller width |
600 mm |
|
Substrate width |
550 mm |
|
Coating width |
500 mm |
|
Mechanical speed |
1-10 m/min |
|
Coating thickness |
Continuous coating thickness per side: Coating thickness is manually adjustable (depending on the slurry, refer to material requirements) Thickness accuracy: ≤±5 μm (excluding abnormal edge areas) |
Application areas: Slot Die Coating Machine is widely used in new energy, photovoltaics, semiconductors, advanced packaging, flat panel displays, etc.
