Single-Station Coater
Item: Single-Station Coater
Accuracy: ≤±5μm
Lead Time: 30-45 days
Shelf Life: 1 year
OEM is accepted, your tag, label, logo
Product Introduction
Product Details

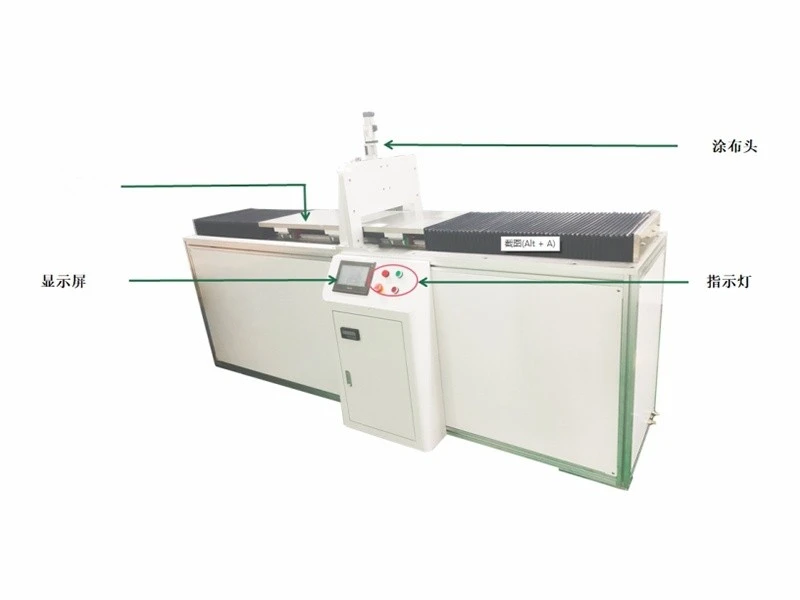

The single station coater uses a precisely controlled slit die to evenly coat the substrate surface with slurry. This equipment is particularly suitable for applications requiring extremely high coating accuracy and consistency.
Product Features
1. Simple die head disassembly and easy cleaning.
2. High-precision coating performance with extremely low slurry waste rate.
3. Single coating station structure, compact layout, and convenient operation and maintenance.
4. Strong process adaptability, capable of handling slurries of different viscosities and supporting various substrates.
Product Parameters
|
Mechanical speed |
6m/min |
|
Coating speed |
Adjustable within maximum mechanical speed transfer |
|
Coating thickness |
Thickness: 40μm–2. 8mm (wet film; after drying, the final dry film thickness is determined based on the slurry solids content after moisture evaporation) Thickness accuracy: ±5% Coating weight: within 5% |
|
Scraper adjustment |
Automatic adjustment, display accuracy 0. 1mm |
|
Injection pump volume |
500ML, hopper (optional) |
|
Coating head drive |
Lead screw + servo motor Three-axis (XYZ) motion, maximum speed XY: 5m/min Effective motion range covers: 1 coating station |
Product Advantages
1. Simple equipment structure and easy maintenance.
2. Low procurement cost and small footprint.
3. Relatively easy operation.
Application Areas: Single-Station Coater can be used in R&D and pilot production, specialty paper and packaging, adhesive products, electronic and functional films, etc.
