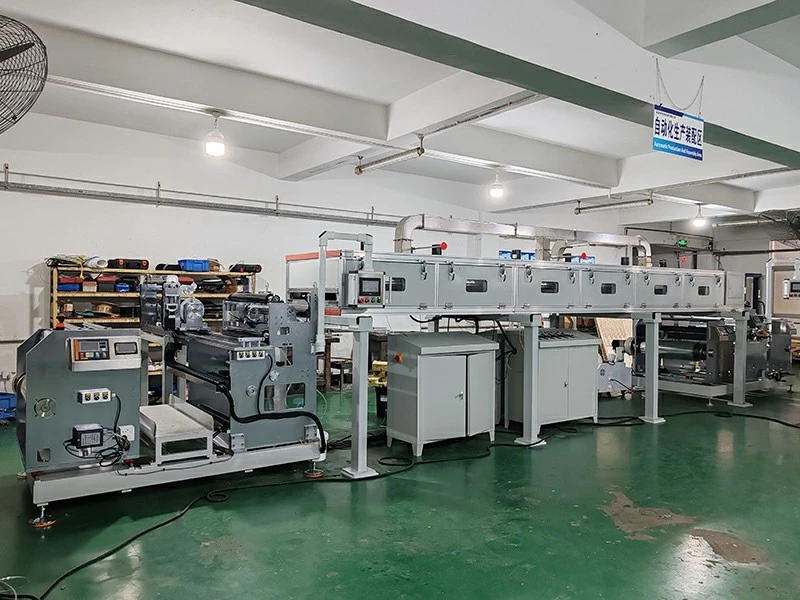

Comma And Micro Gravure Coater
Product Introduction: This comma and micro gravure coater is equipped with both a doctor blade coating head and a micro-gravure coating head, making it suitable not only for high-precision, high-viscosity, and thick coatings, but also for thin coating layers.
Product Introduction
Product Details
This comma and micro gravure coater combines the advantages of micro-gravure coating with those of doctor blade coating, featuring two types of coating heads to meet the coating needs of various coatings.
Product Features
1. High Coating Precision: The high-precision machining of the comma and micro gravure coater combined with a micron-level adjustment mechanism, enables highly uniform coating.
2. Two Coating Heads for Flexible Use;
Product Parameters
|
Coating type |
This comma and micro gravure coater |
|
Guide roller width |
Customizable |
|
substrate width |
Customizable |
|
Coating width |
Customizable |
|
mechanical speed |
Customizable |
|
Coating speed |
Set according to curing time |
|
Coating thickness |
Continuous coating thickness per side: 0.3-0.4mm (depending on the slurry, refer to material requirements) Thickness accuracy: ≤±5μm (excluding abnormal edge areas) |
|
Scraper adjustment |
Digital setting adjustment, display precision 3 μm |
Application areas: lithium battery manufacturing, optical and functional films, adhesive tapes and labels, packaging and decorative materials, etc.
