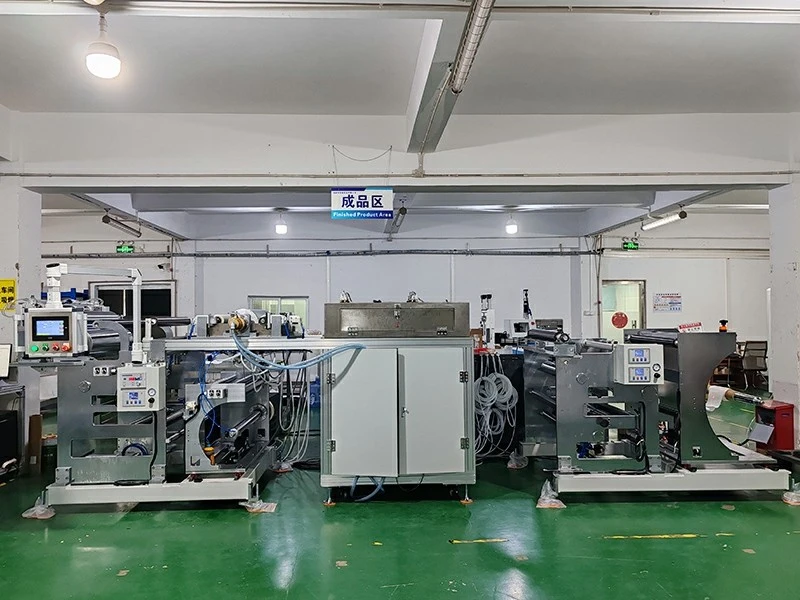

Comma Coating Machine
Product Overview: Comma Coating machine is suitable for coating applications requiring a wet adhesive thickness of ≥10 μm and an adhesive viscosity range of 1,000 to 30,000 cps.
Product Introduction
Product Details
Comma Coating machine is a high-precision coating tool, named for the comma-like shape of its blade edge. By precisely controlling the speed and positioning of the blade, this device scrapes away excess coating material from the substrate to achieve a uniform coating. It is particularly well-suited for applying high-viscosity fluids and creating thicker coating layers. The Comma Coater is frequently utilized in conjunction with other coating methods to maximize overall coating efficiency and functionality.
Product Features
Comma Coating machine offers low operating costs and accommodates a wide range of coating viscosities;
Intuitive controls and a simple structure.
Product Specifications
|
Coating Type |
Comma Blade |
|
Guide Roller Web Width |
850 mm |
|
Substrate Width |
750 mm |
|
Coating Width |
700 mm |
|
Mechanical Speed |
3 m/min |
|
Coating Speed |
Based on the curing time setting |
|
Coating Thickness |
Continuous Coating Single-Side Thickness: 0. 3–0. 4 mm (Determined by the slurry; refer to material requirements) Thickness Accuracy: ≤ ±5 μm (Excluding edge anomaly zones) |
|
Scraper Adjustment |
Digital setting and adjustment; display resolution: 3 μm. |
Product Features
- Constructed from high-hardness metal with specialized surface treatment, the product resists wear and deformation even during prolonged use. Its extended service life effectively reduces the frequency of blade replacements and lowers overall operating costs.
- Ideal for high-viscosity fluids and thick coatings, the fixed comma blade continuously and stably scrapes away excess slurry, thereby ensuring consistent coating quality.
Application Areas: Comma Coating machine is usually used in Lithium-ion battery manufacturing, optical and functional films, adhesive tapes and labels, packaging and decorative materials, etc.
