Transparent Film Coater
Products overview: The transparent film coater is equipped with slot coating, which is a complex coating of 3-layer composite film, and the belt conveyor is stable during the coating process.
Product Introduction
Product Details

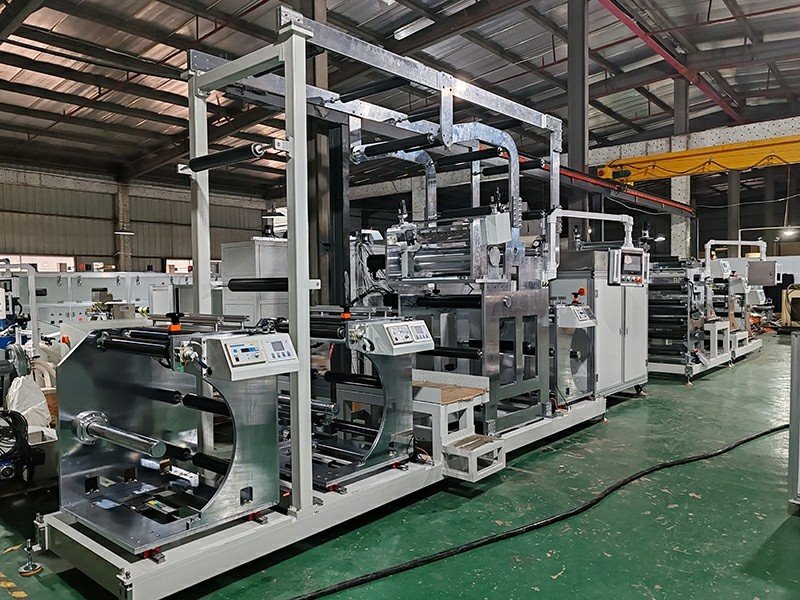

The transparent film coater is a complex and precise coating device for 3-layer composite films. It is equipped with a precision slit coating head, a vacuum adsorption plate, and a UV heating curing function. The design is ingenious, and the coating is uniform and has a good coating effect.
Product Features
1.The transparent film coater features a modular design, facilitating easy assembly and disassembly and enabling future functional expansion.
2. Vacuum adsorption enhances the adhesion between the substrate and the platform, improving coating uniformity.
3. It has a wide coating window, adaptable to various coating scenarios, especially suitable for substrates up to 550mm in diameter and production scenarios with high linear speeds.
4. Suitable for roll substrates.
Product Parameters
|
Power supply |
Single-phase AC 220V ± 10%, 50Hz Total power: 15 KW + UV |
|
|
Operating voltage |
380V/220V |
|
|
Gas source |
0.5-0.8MPa compressed air |
|
|
Coating type |
Slit coating |
|
|
Applicable system |
resins |
|
|
Guide roller width |
600 mm |
|
|
substrate width |
550 mm |
|
|
Coating width |
500 mm |
|
|
Mechanical speed |
1-10 m/min |
|
|
Coating speed |
Set according to UV curing time. |
|
|
Coating thickness |
Continuous coating thickness per side: Coating thickness is manually adjustable (depending on the slurry, refer to material requirements) Thickness accuracy: ≤±5 μm (excluding abnormal edge areas) Coating requires a temperature control device with slurry heating function. |
|
|
Correction accuracy |
±0.5mm |
|
|
Back roller diameter |
Ф 200 mm, roller runout ≤5 μm (customizable) |
|
|
Curing method |
UV curing |
|
|
Tension control |
40-200N |
|
|
Roll diameter |
Max.Ф 500mm (Customizable) |
|
|
Winding up and down the winding core |
Max.Ф76mm |
|
|
Operating direction |
Along the foil transfer direction, the right side is the operating side. |
|
|
Equipment size |
L11680 mm x W 1560 mm x H 2213 mm (Actual size applies) |
|
|
Weight |
Approximately 6000 kg (actual weight may vary). |
Product Advantages
1. Complex process: The transparent film coater is complex coating equipment, ingenious design, and superb technology
2. Flexible assembly, suitable for most coating needs
Applications: Wound care, transdermal drug delivery systems, medical tapes, etc.
