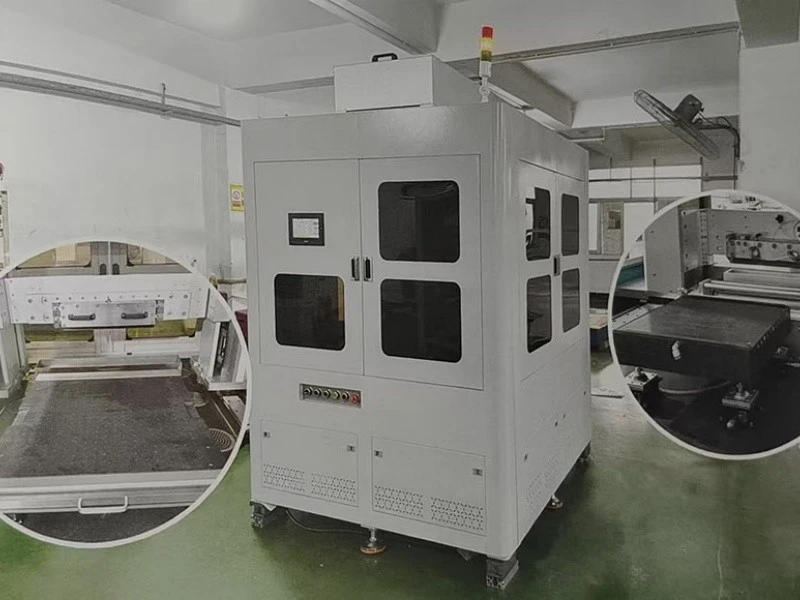

Photovoltaic Coating Machine
Product Overview:
Tem: photovoltaic coating machine
Accuracy: ≤±3μm
Lead Time: 30-45 days
OEM is accepted, your tag, label, logo
Product Introduction
Product Details

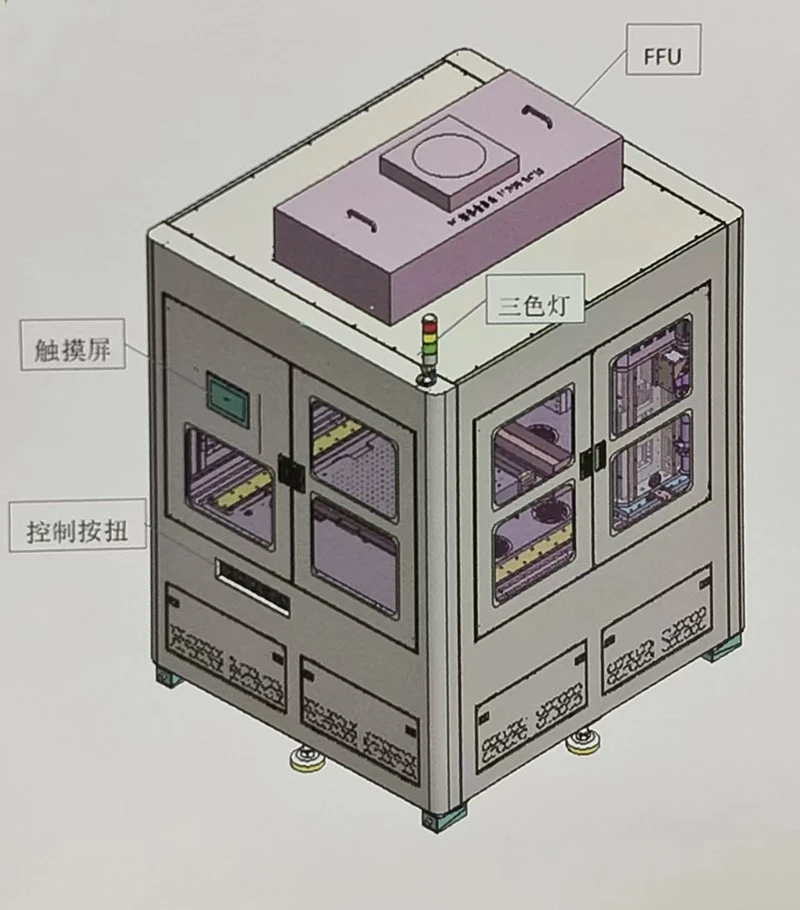

This photovoltaic coating machine utilizes a slot-die extrusion method and represents the latest generation of R&D-oriented coating equipment developed by Yingnaite. It is capable of performing coating operations on a wide variety of substrates. The system employs a vacuum chuck to secure the substrate and utilizes a gantry-based motion system-combined with a high-precision fluid delivery pump for material dispensing-to achieve the precise deposition of thin films using various materials. The photovoltaic coating system delivers excellent overall film uniformity, minimizes material consumption, and operates at high speeds. Designed for use with sheet-based substrates to produce finished products, this system is widely applied across fields such as display technology, solar energy, semiconductors, and flexible electronics.
Product Features
Features advanced precision slot die coating technology, controlling film thickness uniformity to within ≤±5%.
Precision slot die coating utilizes a closed-loop fluid delivery system, achieving material utilization rates of over 95% and significantly reducing R&D trial-and-error costs compared to traditional blade coating methods.
Product Specifications
|
Substrate Dimensions |
500*500mm |
|
Substrate Type |
Glass |
|
Film Thickness Range |
200μm-1μm |
|
Uniformity |
≤±5% |
|
Edge Effect |
≤10mm |
|
Material Viscosity Range |
Standard 1 to 50 cps (Syringe Pump) |
|
System Packing Quantity |
Under 30ml |
|
Syringe Pump |
Syringe pump capacity: 5 ml; Basic system reservoir volume: 30 ml. |
|
Slot Coating Head |
316L Stainless Steel Alloy (Corrosion-resistant; suitable for coating materials with a wide range of properties) | Maximum Coating Width: 296 mm |
|
Equipment Dimensions |
L1450mm × W1200mm × H1650mm (Customizable) |
Product Advantages
- Precision: Slit coating offers extremely high precision, ensuring the uniformity, consistency, and defect-free quality of the coated layer.
- Small-Batch Friendly: Ideal for material screening and formula validation during the R&D phase; it features high material utilization efficiency, thereby reducing the trial-and-error costs associated with expensive materials.
- High Adaptability: Compatible with a wide range of nanoscale material systems, including perovskites, photoresists, and others.
Application Fields: R&D involving high-precision thin-film coating for displays, solar energy, semiconductors, flexible electronics, and similar sectors.
