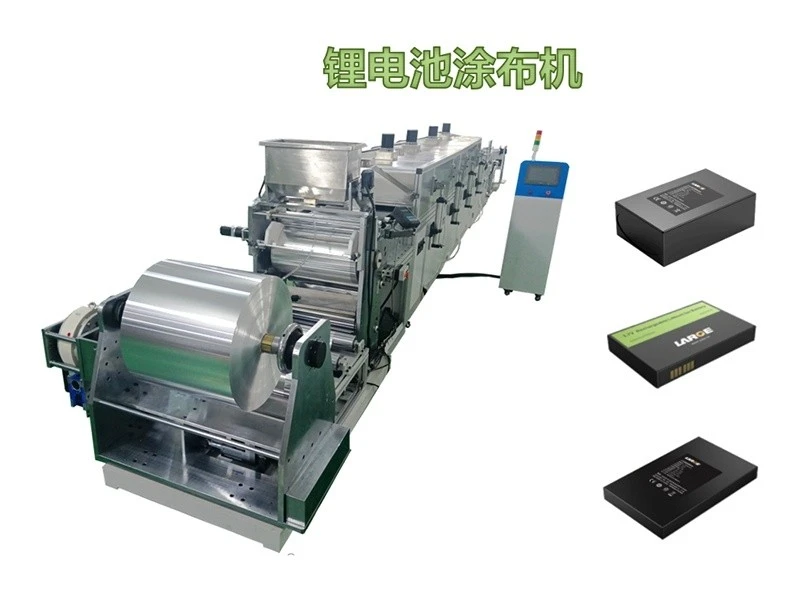

Medium Lithium Battery Coating Machine

Item: Medium lithium battery coating machine
Accuracy: ≤±3μm
Weight: 2000kg
Lead Time: 30-45 days
Warranty: 1 year
OEM is accepted, your tag, label, logo

Send Inquiry

Product Introduction

Product Details

This medium lithium battery coating machine is designed for mid-sized lithium battery production operations. Integrating various coating techniques, it enables the high-precision, uniform application of cathode and anode slurries. Furthermore, it features advantages such as stable tension control, high drying efficiency, and intelligent data monitoring, thereby helping to enhance both the quality of lithium battery electrode sheets and overall production efficiency.

Product Features

1. Simple Unwinding Operation: The material roll is supported by an air-expanding shaft, facilitating quick and convenient roll changes while ensuring uniform tension and precise centering. The built-in ultrasonic sensor within the web guiding controller enables automatic web alignment, effectively preventing product quality defects caused by uneven material alignment.

2. Automatic Tension Control: Utilizes a magnetic powder brake system integrated with a tension controller to minimize manual labor requirements.

3. Multiple Coating Methods: This medium lithium battery coating machine Features a combination of doctor blade metering transfer coating and a reverse-roll transfer coating mechanism, achieving a blend of high-precision coating and superior product aesthetics. The pneumatic quick-lift roller mechanism, paired with a servo-driven roller gap adjustment system, offers versatile options for both precise continuous coating and intermittent coating applications.

4. Synchronous Speed Control: Employs vector variable-frequency drive technology to precisely regulate tension across each section of the machine while ensuring the synchronized operation of all mechanical components.

5. Multiple Heating Options: Depending on the specific solvent types used by the customer, various heating methods-such as electric heating tubes, far-infrared radiation, or microwave heating-are available to effectively enhance heating efficiency. The drying oven length can be configured in various ways to match the customer's production capacity, thereby maximizing the return on investment.

6. Lamination Mechanism: Equipped with an automatic Web Guiding System (EPC) positioned prior to the lamination stage-including a dedicated system for the second unwinding station-to ensure the utmost accuracy and precision throughout the lamination process. The professional design of the lamination mechanism guarantees a flat, smooth, and defect-free laminated product.

Product Specifications

Power Supply	Single-phase AC 220V ±10%, Frequency 50Hz; customizable to single-phase AC 110V ±10%, Frequency 60Hz. 1: Power: 55 kW (excluding corona treatment).
Air Source	0. 5–0. 8 MPa Compressed Air
Coating Type	Continuous Coating
Applicable Systems	Cathode Oil-based Slurries (Lithium Cobalt Oxide, Lithium Iron Phosphate, Lithium Manganese Oxide, Ternary Materials), Anode Water-based Slurries (Graphite, Silicon-based Anodes), Supercapacitor Slurries
Guide Roller Web Width	500mm
Substrate Width	Max. 480mm
Coating Width	0–400 mm, adjustable via a baffle.
Mechanical Speed	0. 01-1. 0m/min
Coating Speed	Max. 0. 2 m/min (Reference speed for graphite anode coating; viscosity: 6000–1100 mPa·s; solid content: 56%; dry coating thickness: 80 μm)
Coating Thickness	Continuous Single-Sided Dry Coating Thickness: 30–150 μm (determined by the slurry; refer to material specifications) Thickness Accuracy: ≤ ±3 μm (excluding anomalous edge regions; refer to Product Evaluation for sampling and measurement standards)
Scraper Adjustment	Manual adjustment, display resolution: 1 μm

Product Advantages

1. High Precision

The UV coating machine, its head features high control precision; this high-quality coating capability ensures consistency in battery capacity, safety, and cycle life.

2. Compact Design and Flexibility

The machine features a compact footprint with high space utilization efficiency. It is compatible with a wide variety of slurry systems and coating methods, making it ideal for flexible production scenarios involving multiple product types.

3. Comprehensive Cost Advantages

Compared to smaller-scale laboratory units, it offers significant economies of scale, while simultaneously avoiding the high initial capital investment typically associated with large-scale production lines.

Application Examples (Case Studies): Video

Application Fields: Suitable for the precision coating of positive and negative electrode materials, lithium-ion batteries, battery separators, electrode sheets, graphene, hydrogels, liquid silicone, and similar materials.
