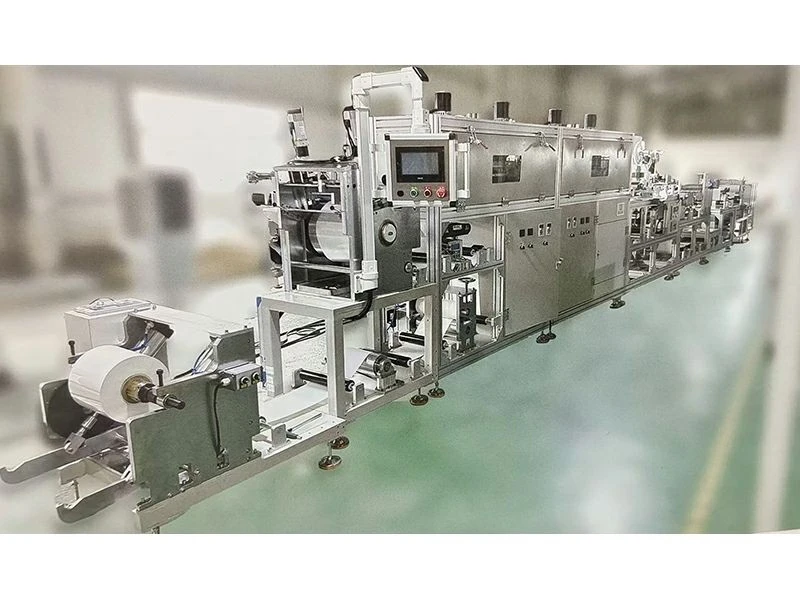

Chemical Test Paper Coating Line
Item: Chemical Test Paper Coating Line
Accuracy: ≤±5μm
Lead Time: 30-45 days
Shelf Life: 1 year
OEM is accepted, your tag, label, logo
Product Introduction
Product Details

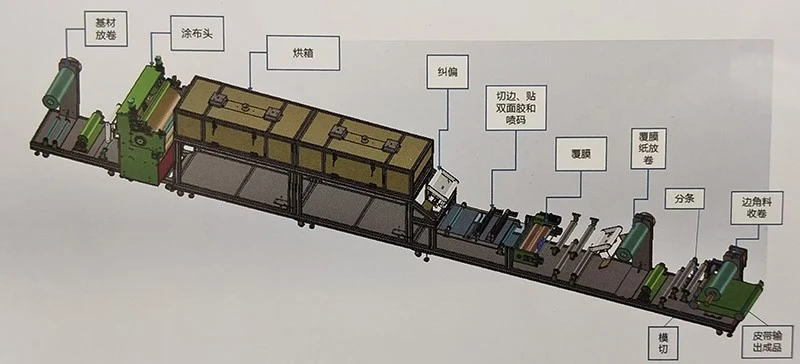

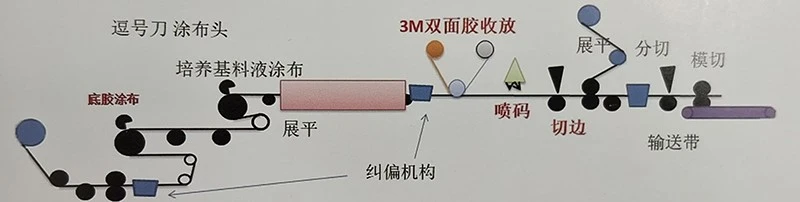

The Chemical Test Paper Coating Line is an automated production line that integrates a slitting machine. Equipped with a comma-bar coating head, this system uniformly applies the target slurry onto the surface of a substrate. Through specific process methodologies, it precisely controls parameters such as coating thickness, dimensions, and shape. Subsequently, a hot-air system cures the slurry, ensuring its firm adhesion to the substrate surface. This equipment is designed to process roll-based substrates and ultimately winds the finished product into rolls.
Product Features
1. The Chemical Test Paper Coating Line is easy to disassemble and modify, allowing for the selection of an appropriate coating method based on the characteristics of the coating material;
2. The web transport is stable and capable of low-tension operation;
3. The slitting unit can be adjusted in size according to specific requirements.
Product Specifications
|
Coating Type |
Continuous Coating |
|
Guide Roller Web Width |
280mm |
|
Substrate Width |
250mm |
|
Coating Width |
240 mm |
|
Mechanical Speed |
5m/min |
|
Coating Speed |
3m/min |
|
Coating Thickness |
Continuous Coating Single-Side Thickness: 50 μm Thickness Accuracy: ≤ ±5 μm |
|
Equipment Dimensions |
L 11000 mm×W 480 mm×H 1650 mm (Actual size applies) |
Product Advantages
1. The Chemical Test Paper Coating Line, its thickness accuracy of ≤ ±5 μm, providing robust data support for rigorous laboratory analysis.
2. Modular Design: Features a segmented, modular structure that facilitates future functional expansion.
Application Fields: Healthcare, Food Safety, Environmental and Industrial Testing, etc.
