Automated Needle Pressing Equipment
Product Overview
Item: Automated needle pressing equipment
Accuracy: ±0. 01mm
Lead Time: 45-60 days
Shelf Life: 1 year
OEM is accepted, your tag, label, logo
Product Introduction
Product Details

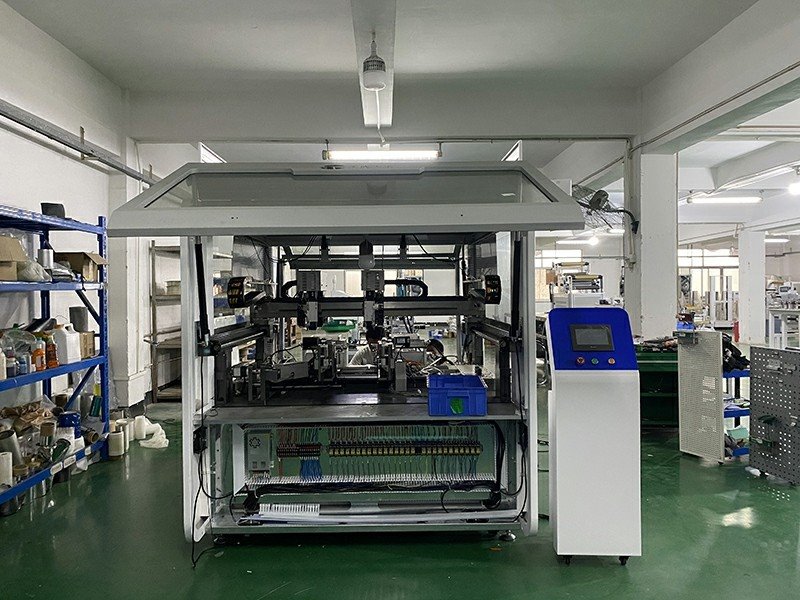

Automated needle pressing equipment is a specialized automated machine designed for the precise assembly of needle-like components (such as medical injection needles). Utilizing robotic technology for precision assembly, the system minimizes manual intervention while significantly enhancing both efficiency and accuracy. It features a flexible vibrating feeder for material supply and supports material loading and unloading via carts (upgradeable to automated AGV handling). The system integrates a comprehensive suite of processes, including assembly, adhesive dispensing, curing, screw fastening, labeling, aging, functional testing, laser marking, and visual inspection.
Product Features
1. Integrated with a robotic multi-gripper assembly system, the line is capable of handling the simultaneous assembly of various materials; Automated needle pressing equipmen boasts a repeatability precision of ±0. 01 mm and can be seamlessly interfaced with an MES.
2. It enhances the level of digital and intelligent automation across the entire production line; utilizing CCD vision systems, it performs inspection tasks across multiple workstations. The equipment features a flexible, modular design that allows for standalone operation, thereby reducing automation costs for the enterprise.
3. The system employs robotic arms for precision assembly, minimizing manual intervention to boost both efficiency and accuracy. It utilizes flexible vibrating feeders for material supply and supports loading/unloading directly via material carts (with the option to upgrade to automated loading/unloading via AGVs).
Product Specifications
|
Wire Rod |
PP, PDO |
|
Adjustable Length |
90–1000 mm; typically, it is around 400 mm. |
|
Wire Diameter |
0. 15mm-0. 6mm |
|
Pin-tail aperture |
0. 2-0. 7mm |
|
The pinhole is larger than the wire diameter. |
0. 02-0. 05mm |
|
Yield |
Single-needle: 10–30 seconds per piece; Double-needle: 1–2 minutes per piece. |
Product Advantages
1. Automated needle pressing equipment is designed to meet the demands of high-volume production, this high-end equipment operates at exceptional speeds, capable of executing long-stroke, precision press-fitting operations within a very short timeframe.
2. Precision assembly is performed by robotic systems, thereby minimizing manual intervention while simultaneously enhancing both efficiency and accuracy.
3. Features a flexible vibrating feeder system for material supply, enabling seamless loading and unloading directly via material carts (upgradeable to automated loading and unloading via AGVs).
Application Fields: New Energy Inverters, Relays, Fuses, Sensors, Distribution Boxes, Next-Generation E-cigarettes, Medical Devices and Equipment
